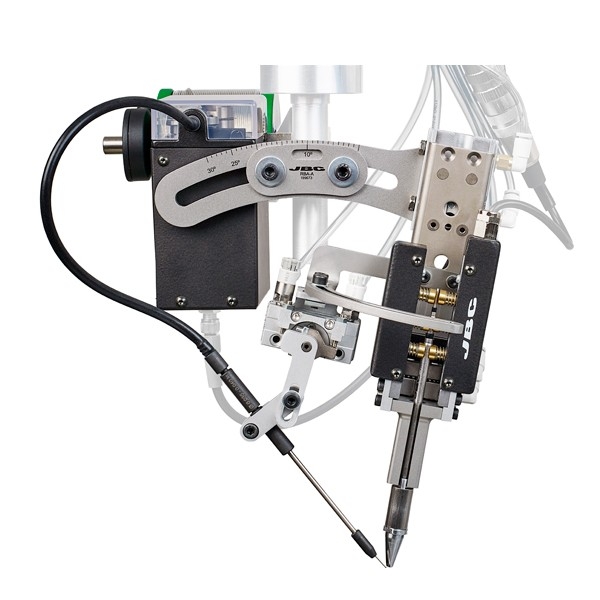

JBC Soldering Unit for Automation

Be the first to review this product
HA470A-5A
SKU
JBC-HA470A-5A
Call for Pricing
Add to Wish List Add to Compare
Email

JBC Soldering Unit for Automation Overview

The NEW Soldering Unit HA470 for Heavy Duty Soldering makes available to the Electronic Industry the first selective soldering solution featuring Automatic Cartridge Exchange.

JBC Soldering Unit for Automation Features

  • The New Automatic Soldering Iron TRA470, in combination with the Cartridge Stand CS2R470, features automatic cartridge exchange which allows the soldering robot using different tip geometries to get the Highest Soldering Quality and automatically changing the cartridges when the one being used wears out.
  • The Solder Feeder SFR, assembled on the RBA Soldering Head, includes solder wire perforation function, allowing flux flow and outgassing to minimize solder splashing.
  • The Tip Cleaner CLMR with its 50 mm (1.97") diameter brushes thoroughly clean the soldering tip in just 1 second increasing its heat transfer capacity.
  • To establish the communication between the UCR470 Control Box and a Robot (PC or PLC) JBC provides the RS232 Communication Protocol for UCR. Download at www.jbctools.com/jbcsoftware.html.
  • R470 Cartridges and Guide Tube Sets GSFR are not included.

JBC Soldering Unit for Automation Specifications

  • SELECTABLE PARAMETERS
  • Temperature: 90 to 450 ºC (190 to 840 ºF)
  • Solder wire length: 0.5 to 250 mm / 0.02 to 9.84 in
  • Solder wire speed: 0.5 to 120 mm/s / 0.02 to 4.72 in/s
  • SOLDER COMPATIBILITY
  • Wire diameter: 0.5 to 1.5 mm / 0.020 to 0.062 in
  • SPECIAL FEATURES
  • Cartridge compatibility: R470 Range
  • Automatic cartridge exchange: The TRA features automatic cartridge exchange which allows the soldering robot using different tip geometries to get the Highest Soldering Quality or automatically changing the cartridge when the one being used wears out.
  • Solder Wire Perforation: Specific GSFR solder wire guide sets for flux core perforation are available allowing flux flow and outgassing to minimize solder splashing.
  • Fast, thorough and gentle tip cleaning:: The Tip Cleaner CLMR with its 50 mm (1.97") diameter brushes thoroughly clean the soldering tip in just 1 second increasing its heat transfer capacity. Brushes are available with metal or plastic bristles.
  • ESD/EOS
  • ESD safe
  • Tip to ground resistance: <2 ohms
  • POWER SUPPLY
  • Peak power: 250 W - 42 V
  • Voltage (AC): 100 to 240 V
  • Ambient operating temp.: 10 to 40 ºC / 50 to 104 ºF
  • DIMENSIONS AND WEIGHT
  • Package: 545 x 345 x 275 mm / 6.0 kg 21.5 x 13.6 x 10.8 in / 13.23 lb
