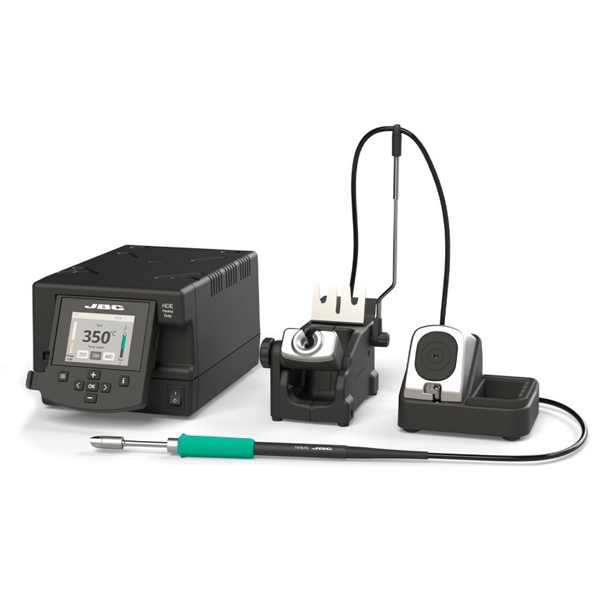

JBC Heavy Duty Solder Station 230V Overview
The HDE station is the most powerful soldering unit of the JBC range. Now its new power supply (SMPS) ensures high efficiency and increased performance on soldering applications that require large amount of heat.
It works with the JBC Most Efficient Soldering System and the intelligent Sleep & Hibernation modes.
This station comes with the comfortable T470 Handle and it is only compatible with C470 Cartridges.
It´s easy to use menu is configurable in 10 different languages: English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean and Chinese.
NOTE: CARTRIDGES NOT INCLUDED
Sleep and Hibernation mode: These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and min. temperature: Limit the temperature range in which the operator is allowed to work.
Temperatue levels: Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
Soldering graphics: Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
PIN protection: Keep station parameters protected against unauthorized access.
10 user interface languages: English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean, Chinese.
JBC Heavy Duty Solder Station 230V Product Composition
Modular System: HDE Control Unit
JBC Heavy Duty Solder Station Selectable Parameters
Temperature: 90 to 500 ºC / 190 to 930 ºF
Dynamic Soldering Profiles: This new and unique feature allows controlling the heating ramp up rate of the tool to gradually increase the temperature of the parts to join through all the phases of the soldering process. Up to 25 fully configurable soldering profiles can be stored.
JBC Heavy Duty Solder Station 230V Connectivity
USB-B (rear): Software PC / Traceability
USB-A (front): Firmware update Soldering Graphics management
Robot: RS-232 remote control or Smart Fume Extractor connection.
Equipotential bonding
JBC Heavy Duty Solder Station 230V ESD/EOS
ESD safe
Ambient operating temp: 10 to 40 ºC / 50 to 104 ºF
Control Unit: 148 x 120 x 232 mm / 2.6 kg
