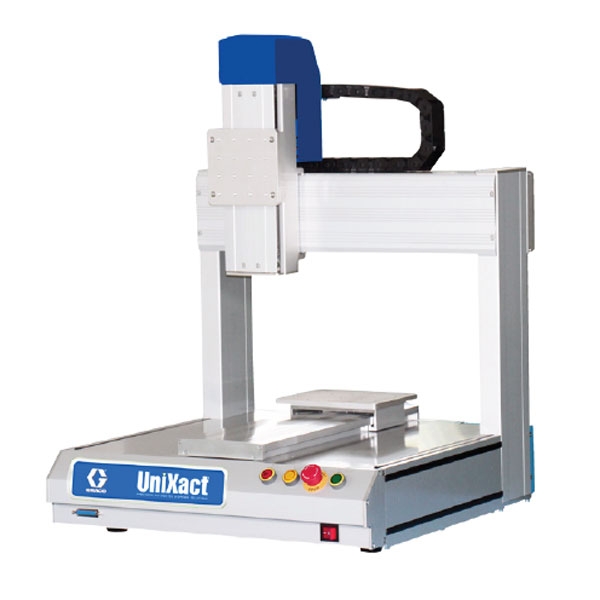

Graco UniXact C100 Series Benchtop Automated Dispensing Systems Overview
In combination with different dispense valves, with a design that adapts to various automated precision dispensing applications.
Perfect integration of precision dispensing and accurate automatic positioning into a desktop platform.
Graco UniXact C100 Series Benchtop Automated Dispensing Systems Benefits
Graco UniXact C100 Series Benchtop Automated Dispensing Systems Technical Specifications
Model Travel range X/Y/Z (mm) Size (W x D x H mm)
• C100-221TA1 200/200/100 480 x 475 x 766
• C100-221SA2 200/200/100 540 x 555 x 845
• C100-331TA 300/300/100 590 x 575 x 796
• C100-331SA 300/300/100 645 x 655 x 875
• C100-441TA 400/400/100 690 x 675 x 796
• C100-441S 400/400/100 735 x 740 x 875
• C100-551TA 500/500/100 790 x 775 x 796
• C100-551SA 500/500/100 835 x 840 x 875
TA1: stepper motor
SA2: servo motor
• LCD display
• Repeatable positioning: ± 0.02 mm
• Maximum travel Speed X/Y Axis: 600 mm/s Z Axis: 300 mm/s
• Load Capability: 10kg
• Needle calibration as standard
• Store up to 99 programs
