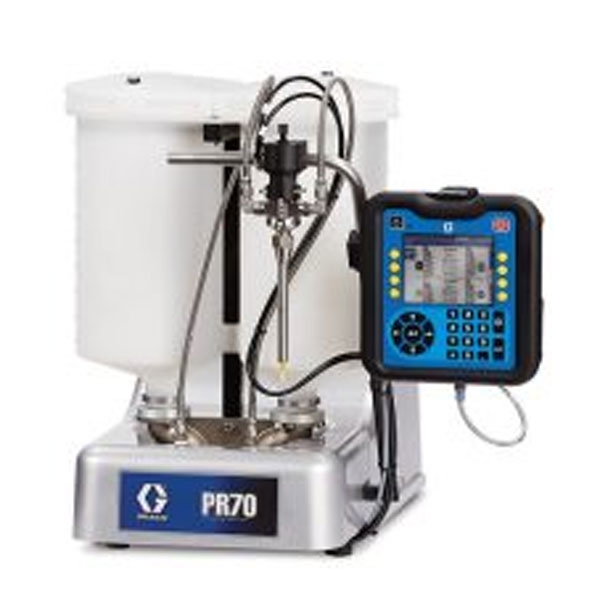

Graco PR70 Meter, Mix & Dispense Systems Overview

The Graco PR70 fixed and variable ratio systems accurately meter, mix and dispense medium-to-low viscosity materials for potting, gasketing, gasketing, encapsulation and syringe filling. All the features you need, in a compact, modular design.

Graco PR70 Meter, Mix & Dispense Systems Features

  • Ratio assurance packages
  • Recirculation option
  • Integrated on-board heater control
  • Input/output options
  • Auto refill package
  • Supply systems options

PR70: Accurate two-component, fixed ratio dispensing

  • Medium to low viscosity materials
  • Exceptional performance with materials from 1:1 to 12:1
  • MD2 valve high pressure accuracy with multiple seat styles and adjustable snuffback for clean, precise dispensing
  • Proven ratio accuracy. Multiple tube sizes to pinpoint specific target ratios and deliver ratio accuracy to +/- 1%

PR70v: Variable ratio dispensing for two-component materials

  • Handles a wide range of material formulations
  • Material ratios from 1:1 to 24:1
  • Proven ratio accuracy of +/- 1%
  • Versatile - ideal for applications using up to 70 cc shot sizes
  • Multiple levels of user interface to best support your application

PR70e: Reliable fixed ratio dispensing at an affordable price

  • Easy-to-use, entry level system
  • Medium to low viscosity materials
  • Material ratios from 1:1 to 12:1
  • Proven ratio accuracy of +/- 1%
  • MD2 valve high pressure accuracy for clean, precise dispensing

 PR70f: Bead dispensing capability with flow control

  • Flow control for reliable bead consistency
  • Materials from 1:1 to 12:1
  • Programmable shot sizes from 2 to 70 cc
  • MD2 valve high pressure accuracy with multiple seat styles and adjustable snuffback for clean, precise dispensing
  • Proven ratio accuracy. Multiple tube sizes to pinpoint specific target ratios and deliver ratio accuracy to +/- 1%

PR70s: Exceptional dispense accuracy with Servo control

  • Reliable Servo motor control
  • Exceptional performance with materials from 1:1 to 12:1
  • MD2 valve high pressure accuracy with multiple seat styles and adjustable snuffback for clean, precise dispensing
  • Proven ratio accuracy of +/- 1%
Graco PR70 Meter, Mix & Dispense Systems Specifications
PR70 and PR70v
Metering Pump Effective Area
80 to 960 sq mm per side
Small Air Cylinder Effective Area
4560 sq mm
Large Air Cylinder Effective Area
10260 sq mm
Maximum Stroke Length
38.1 mm
Minimum Stroke Length
5.8 mm
Volume per Cycle
2 to 70 cc
Pump Cycles
14.3 to 500 cycles per 1 l
Ratios (fixed)
1:1 to 12:1 (depending upon cylinders selected)
Maximum Fluid Working Pressure
20.7 MPa /207 bar
Maximum Air Input Pressure
0.7 MPa/7 bar
Maximum Operating Temperature
70°C, nylon pistons 50°C UHMWPE pistons or PE Tanks
Air Inlet Size
1/4 NPT female
Pump Fluid Outlet Size
-03, -04, -06, -08 or –12 JIC fittings for 4.8 mm, 6.4 mm, 9.5 mm, 12.7 mm, 19.1 mm hoses
Wetted Parts
303/304, 17-4 PH, hard chrome, Chromex™, carbide,Chemical Resistant O-rings, PTFE, nylon, UHMWPE
Weight
55 kg typical with two 7.5 L tanks, 150 kg typical with two 60 L tanks
Sound Pressure Level (at typical operator station for machine mounted Dispense Valve)
82 dBA
Compressed Air
Less than 10 scfm typical (varies with cycle times)
Electrical Power
100-240V 50/60Hz, 1 phase for machine – 80 Watts, 208-240V 50/60Hz, 1 phase for heat – 11 kW max, 120 or 240 VAC 50/60Hz, 1 phase for on-board-agitators, 80 Watts, 240 VAC 50/60Hz, 1 phase for off-board-agitators, 600 Watts
