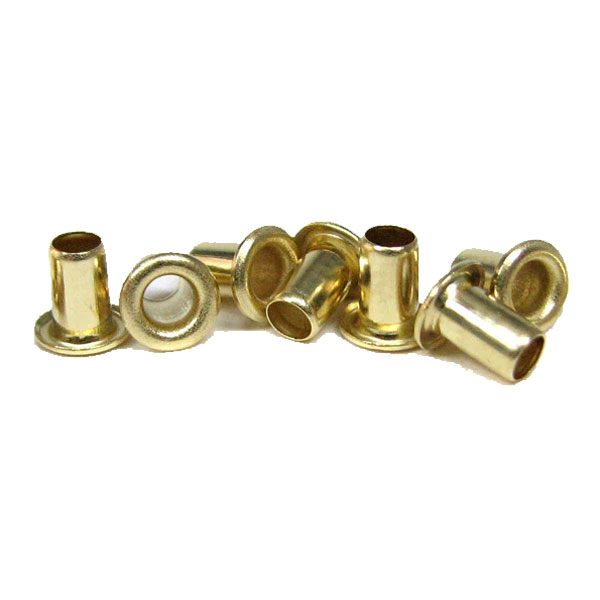

CircuitMedic Copper Eyelets ID .057" OD .067" LUF .095" FD .111" Pkg/25 Overview
Eyelets are brass or copper, electroplated with tin unless otherwise specified.
CircuitMedic Copper Eyelets ID .057" OD .067" LUF .095" FD .111" Pkg/25 Specifications
Part Number |
Flange |
Metal |
ID |
OD |
LUF |
FD |
115-7576-25 |
Flat |
Copper |
.057" |
.067" |
.095" |
.111" |
Note: All dimensions are plus or minus .003"
Eyelet Selection Criteria
ID - Inside Diameter |
.003" - .020" greater than the component lead diameter. |
OD - Outside Diameter |
The clearance hole in the circuit board should be .001" - .005" greater than the outside diameter. |
LUF - Length Under Flange |
The length of the flange should be .020" - .035" greater than the thickness of the circuit board. |
FD - Flange Diameter |
The flange diameter should be small enough to prevent interference with adjacent pads or circuits. |
Out of Stock Availability | Please contact us for lead time |
---|
