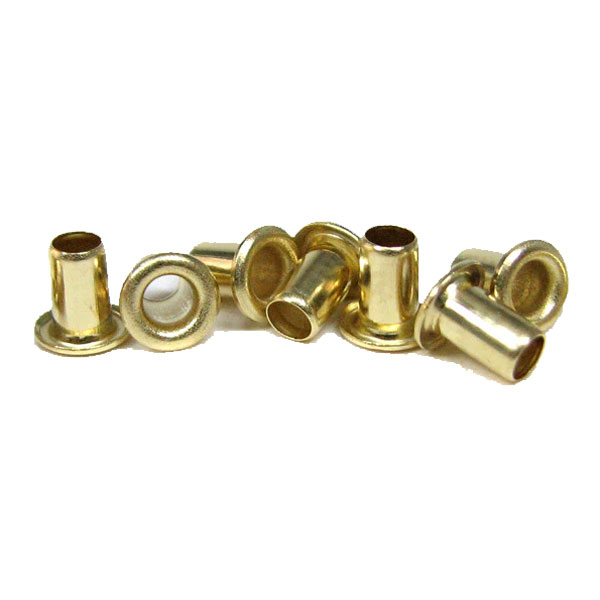

CircuitMedic Copper Eyelets ID .045" OD .059" LUF .090" FD .090" Pkg/25 Overview
Eyelets are brass or copper, electroplated with tin unless otherwise specified.
CircuitMedic Copper Eyelets ID .045" OD .059" LUF .090" FD .090" Pkg/25 Specifications
|
Part Number |
Flange |
Metal |
ID |
OD |
LUF |
FD |
|
115-7456-25 |
Flat |
Copper |
.045" |
.059" |
.090" |
.090" |
Note: All dimensions are plus or minus .003"
Eyelet Selection Criteria
|
ID - Inside Diameter |
.003" - .020" greater than the component lead diameter. |
|
OD - Outside Diameter |
The clearance hole in the circuit board should be .001" - .005" greater than the outside diameter. |
|
LUF - Length Under Flange |
The length of the flange should be .020" - .035" greater than the thickness of the circuit board. |
|
FD - Flange Diameter |
The flange diameter should be small enough to prevent interference with adjacent pads or circuits. |
| Out of Stock Availability | Please contact us for lead time |
|---|
