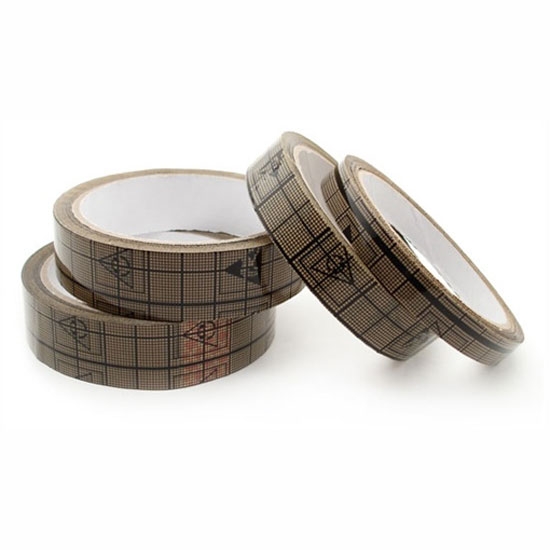

Botron Conductive Grid Tape 1/2" Overview
Botron’s anti static grid tape can be used in a variety of forms. Its most common usages are for electromagnetic interference (EMI) shielding and covering pins, connectors and plugs on electronic equipment during storage or transportation.
Conductive grid tape is a 2 mil thick copolymer with a charge decay of <.014 seconds. Available on 3″ cores in widths of 1/2″, 3/4″, 1″ and 2″ (118′ in length).
Botron Conductive Grid Tape 1/2" Features
| Botron Conductive Grid Tape 1/2" Specifications | |
| Material | Three Layer Copolymer |
| Adhesive | Acrylic-Based |
| Core | 3" |
| Thickness | 1.9 - 2 Mil |
| Length | 118’ |
| Static Generation | <0-50 volts @50%RH |
| Copolymer Layer | <1012 |
| Adhesive | <109 |
| Grid Layer | <105 @50%RH |
| Size | ½", 3/4", 1" & 2" |
| Tensile Strength | 270N/mm sq. |
| Elongation | 160% |
| Colors | Tan with Black Grid Pattern |
Botron Conductive Grid Tape 1/2" Resources
| Out of Stock Availability | 1-2 weeks delivery |
|---|
